Introduction
The KIN H - CL01 is the Kindoo Battery Operated Handle, a self-contained lever handle that turns any smartphone into a key. A knock on the door wakes the handle, which then unlocks over Bluetooth via the KINDOO app — no wiring to the door is required.

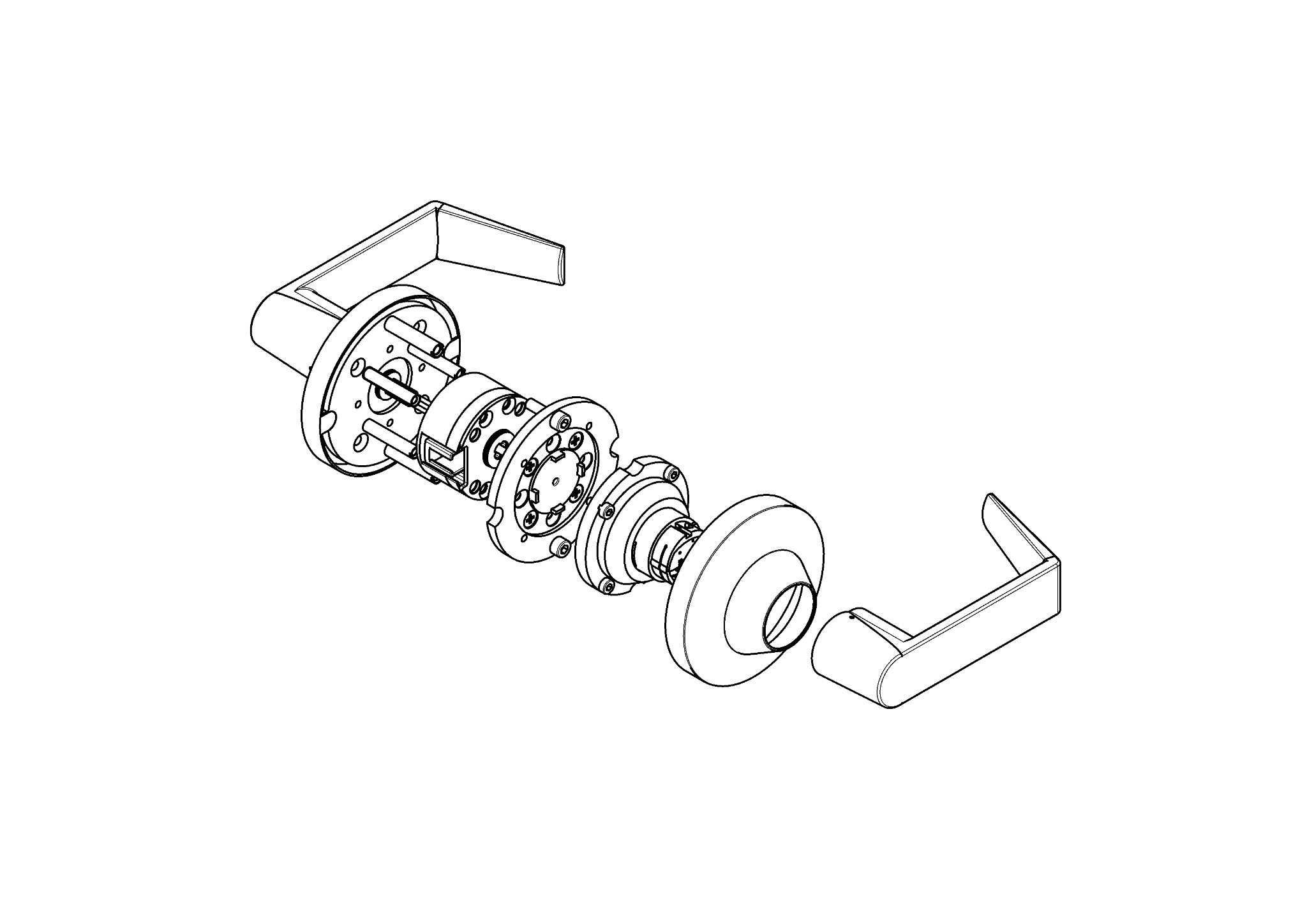

Package Contents
| Item | Description |
|---|---|
| (A) | External Handle Assembly |
| (B) | Internal Handle Assembly |
| (C) | Central Mechanism |
| (D) | 2 ¾" Latch |
| (E) | 1 x Electronic Board |
| (F) | 1 x ASA Faceplate |
| (G) | 2 x Central Pins |
| (H) | 1 x External Handle Unlocker |
| (I) | 1 x Internal Handle Unlocker |
| (J) | 2 x #6 Countersunk Screws |
| (K) | 4 x #8 Button-Head Screws |
| (L) | 2 x #10 Socket-Head Screws |
| (M) | 24 x Spacers |
| (N) | 1 x Cutting Tool |
| (O) | Cylinder Keys |
| (P) | Kindoo Sticker |
Required Tools
- 5/32" Allen (Hex) Wrench
- PH2 Phillips Screwdriver
- Wire Cutter: use high-leverage diagonal cutters or end-nippers rated for stainless steel.
Compliance
US Patents: US11861960B1, US11859408B1, US12037813B1, US10325430B2
Patent Pending: 19/574,366
© 2025 KINDOO LLP. All rights reserved. For support, visit www.kindoo.tech
