Introduction
The KIN S - SM - W02 is a wired, surface mounted electric strike with a preinstalled Kindoo control board (KIN S - W01) that turns any smartphone into a key. It connects directly to the KINDOO app over Bluetooth to grant access — no internet connection is required on the strike itself.

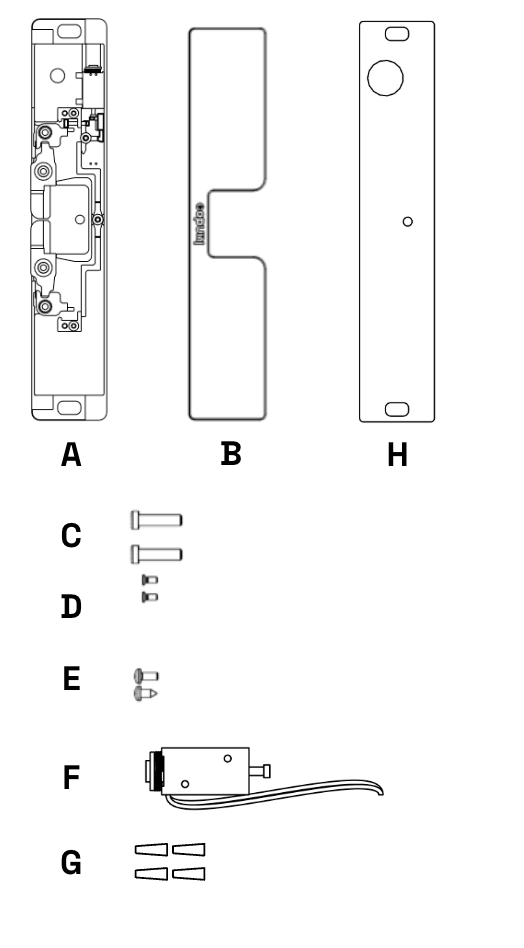

Package Contents
Kindoo Surface Mounted Strike (KIN S - SM - W02)
| Item | Description |
|---|---|
| (A) | Strike Body |
| (B) | Strike Cover |
| (C) | 2 x Mounting Screws |
| (D) | 2 x Spare Cover Screws |
| (E) | 2 x Lockdown Screws |
| (F) | 1 x Solenoid for Fail Safe Operation |
Kindoo Control Board (KIN S - W01) — preinstalled on Strike Body (A).
For the standalone strike manual, visit web.kindoo.tech/manuals/KIN_S_SM_W02.pdf
Required Tools
- Drill
- ⅜” Drill Bit
- #7 (0.201”) Drill Bit
- #25 (0.150”) Drill Bit
- #21 (0.159”) Drill Bit
- ¼-20 Tap
- ³⁄₁₆” Hex Key
- ⅛” Slotted Screwdriver
- PH1 Screwdriver
Specifications
| Specification | Value |
|---|---|
| Power Requirement | 12V to 24V DC, at least 1 amp |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Static Strength | 1,500 lbs |
| Dynamic Strength | 70 ft-lbs |
| Endurance | 250,000 cycles |
| KIN S - W01 FCC ID | 2A7TP-KINSW01 |
Compliance
US Patents: US11861960B1, US10325430B2, US12196005
Install and wire in accordance with the National Electrical Code, ANSI/NFPA70.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
