Introduction
The KIN S - SM - B01 is a battery powered, surface mounted electric strike with a preinstalled Kindoo control board (KIN S - B01) that turns any smartphone into a key. It connects to the KINDOO app over Bluetooth to grant access via an external activation pad — no wiring to a power supply or internet connection is required.

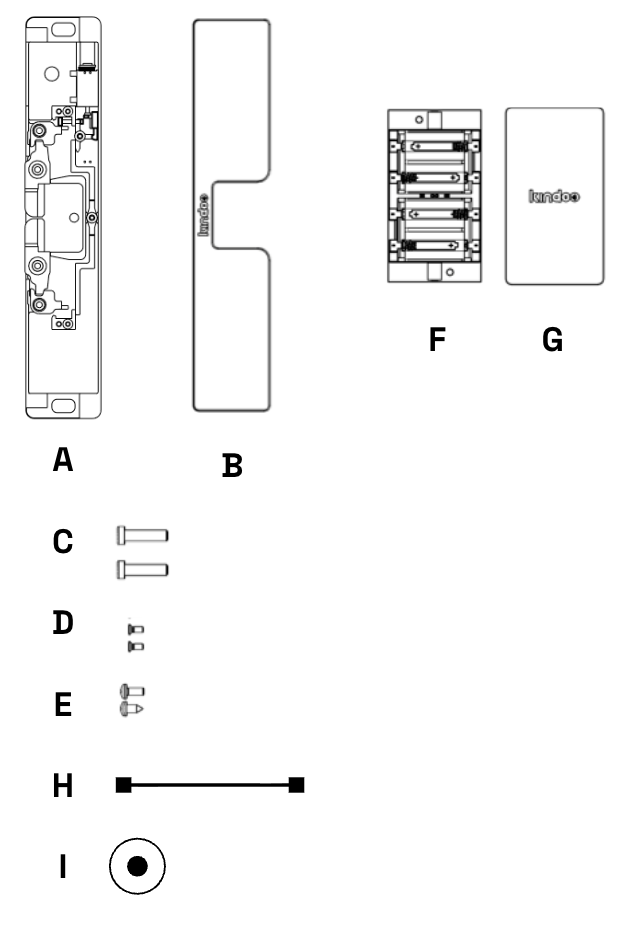

Package Contents
Kindoo Surface Mounted Strike (KIN S - SM - B01)
| Item | Description |
|---|---|
| (A) | Strike Body |
| (B) | Strike Cover |
| (C) | 2 x Mounting Screws |
| (D) | 2 x Spare Cover Screws |
| (E) | 2 x Lockdown Screws |
Kindoo Battery Box (BB 1.0)
| Item | Description |
|---|---|
| (F) | Base Plate |
| (G) | Battery Cover |
Kindoo Activation Pad (AP 1.0)
| Item | Description |
|---|---|
| (H) | Kindoo Activation Pad |
Kindoo Control Board (KIN S - B01) — preinstalled on Strike Body (A).
For the standalone strike manual, visit web.kindoo.tech/manuals/KIN_S_SM_B01.pdf
Required Tools
- Drill
- ⅜” Drill Bit
- #7 (0.201”) Drill Bit
- #25 (0.150”) Drill Bit
- #21 (0.159”) Drill Bit
- ¼-20 Tap
- ³⁄₁₆” Hex Key
- ⅛” Slotted Screwdriver
- PH1 Screwdriver
Batteries (Not Provided)
- 4 x CR123 Batteries
- Replace all 4 batteries at the same time
- Ensure all batteries are of the same brand
- Recommended brands: Panasonic, Energizer
Specifications
| Specification | Value |
|---|---|
| Activation Pad Rating | IP65 (dust protection, low-pressure water jets from all directions) |
| Activation Pad Operating Temperature | 0°F to 120°F (-20°C to 49°C) |
| Battery Box Operating Temperature | 50°F to 120°F (10°C to 50°C) |
| Static Strength | 1,500 lbs |
| Dynamic Strength | 70 ft-lbs |
| Endurance | 250,000 cycles |
| KIN S - B01 FCC ID | 2A7TP-KINSB01 |
Compliance
US Patents: US11861960B1, US10325430B2, US12196005
Install and wire in accordance with the National Electrical Code, ANSI/NFPA70.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
© 2025 KINDOO LLP. All rights reserved. For support, visit www.kindoo.tech
