Introduction
The KIN D 2.0 is a Bluetooth access control module that turns any smartphone into a key. It connects to a door, turnstile, gate, or garage exit device and grants access when it receives a command from the KINDOO mobile app — no internet connection is required on the module itself.
Package Contents
- KIN D 2.0 x 1
- Metallic Kindoo Sticker with double-sided tape x 1
- Wire caps x 5
- Diode 1N4002 x 1

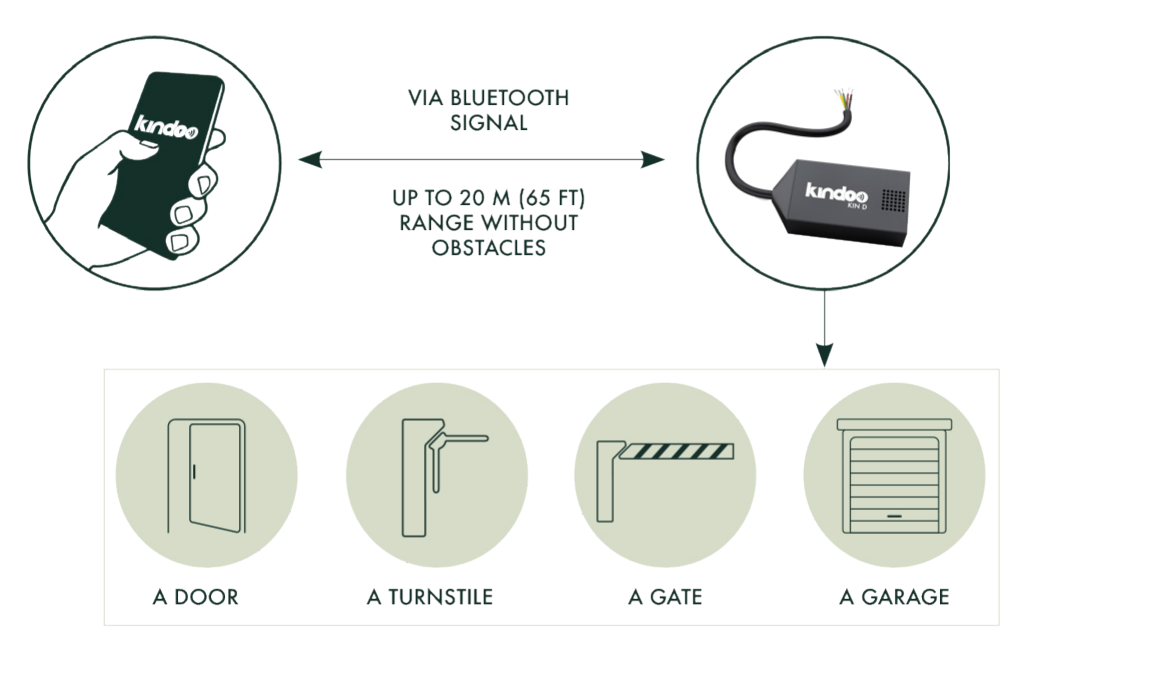

Typical Configuration
The phone communicates with the KIN D 2.0 over Bluetooth. The phone needs internet access to run the KINDOO app, but the KIN D 2.0 itself does not require an internet connection to operate.
The KIN D 2.0 can be used to control:
- A door
- A turnstile
- A gate
- A garage
KIN D 2.0 Specifications
| Specification | Value |
|---|---|
| Power Requirement | 12 - 24 V (DC or AC) |
| Max Current Draw | 200 mA |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | 55 mm (L) x 27 mm (W) x 14 mm (H) — 2.16 in (L) x 1.06 in (W) x 0.55 in (H) |
| Weight | 30 g (1 oz) |
| Emission Range | Up to 20 m (65 ft) |
| Dry Relay Contacts | 2 A |
| Emission Frequency | 2.4 GHz |
| Warranty | 5 years |
End User Acknowledgement
When using KINDOO and any related hardware or software, you fully agree to all the terms and conditions of the KINDOO General Terms and Conditions defined on our website: www.kindoo.tech/generaltermsandconditions.html
If you do not agree with any of the terms and conditions, please return the product in its original, unused condition.
